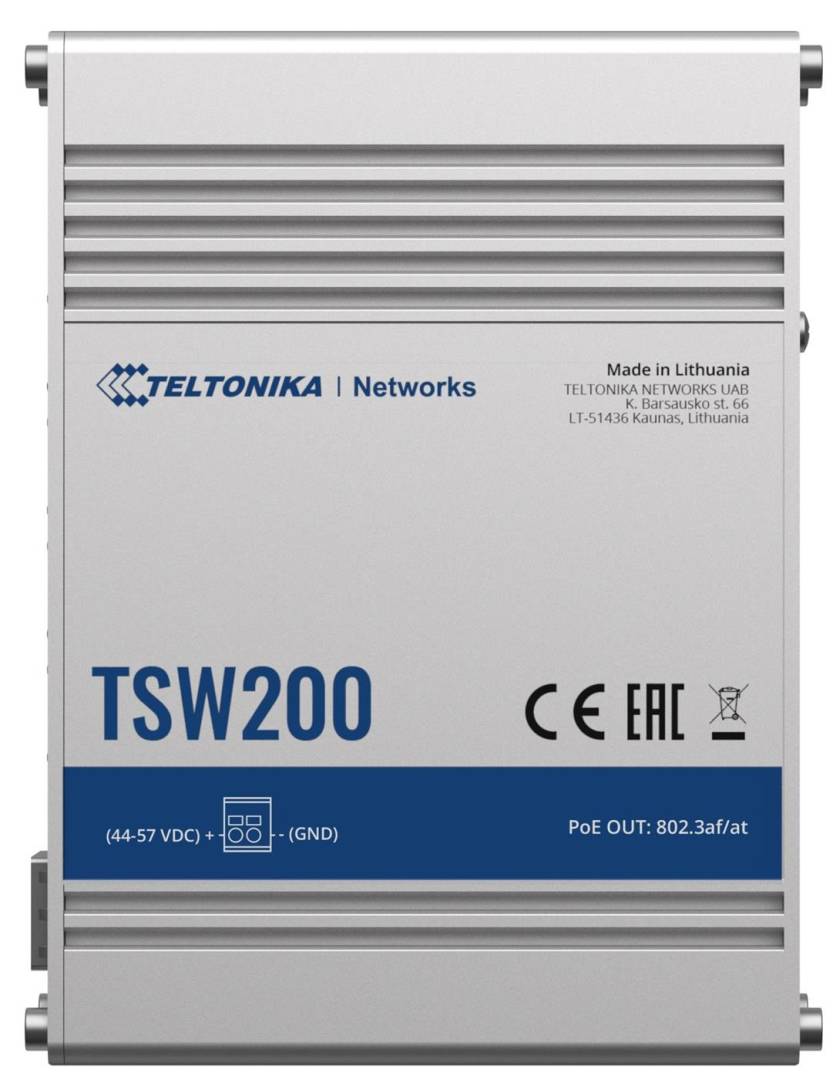

Teltonika TSW200 Industrial Unmanaged PoE Switch

Product description

TSW200 is an industrial PoE switch from Teltonika Networks with an aluminum body, passive cooling, without management,
and after purchasing an extra kit, the switch can also be installed on a DIN rail.

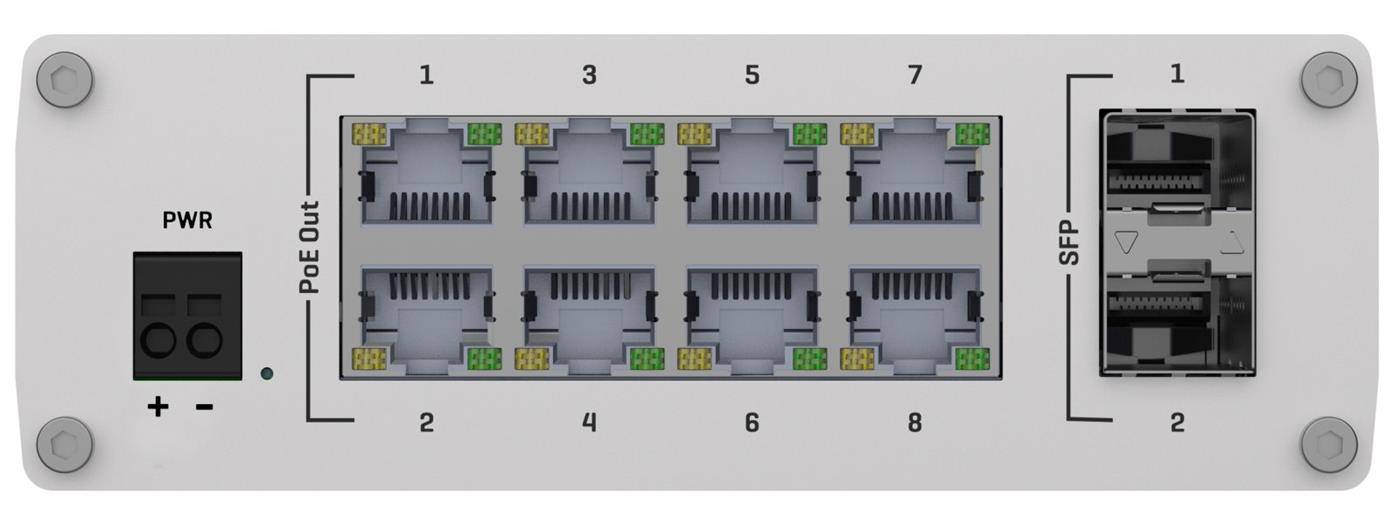

The device offers 2 SFP ports with Gigabit speed, 8 LAN ports with 10/100/1000 Mbps speed, support 802.3af/at PoE (30 W/port) on all
eight ports and a total PoE budget of 240 W .
The power supply is handled by a 2-pin terminal block with input voltage 7 to 57 V.
PoE ports will not work if voltage is lower than 44 V DC is used.

Package contents

• TSW200 device



  Technical parameters

  Connectors and Interfaces

  LAN speed : (8) 10/100/1000Mbps

  Optical interfaces : (2) 1000Mbps

  Power

  Power type : DC terminal

  PoE type : PoE-Out (only)

  PoE-Out standards : 802.3af, 802.3at

  PoE Out ports : 8

  PoE budget [W] : 240

  Max. power consumption [W] : 19

  Power via connector/terminal : 7 .. 57V DC

  Physical characteristics

  Protection class : IP30

  Design : Desktop

  Fans : No

  Chassis design : Metal

  Operating temperature [°C] : -40 up to 75

  Width [mm] : 132

  Height [mm] : 44

  Depth [mm] : 95

  General

  Switchning capacity [Gbps] : 20

  MAC address table : 2000
