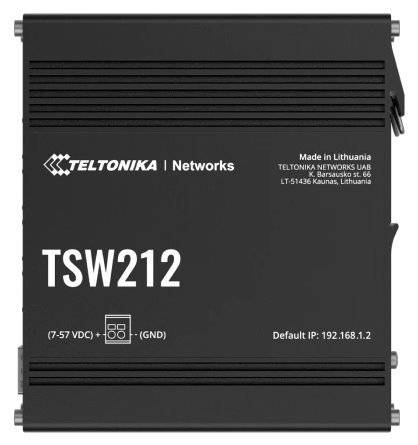

Teltonika TSW212 Managed Network Switch

Product description

TSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support
and static IPv6 routing for greater network management.
This switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, and has 8x1G LAN ports
and 2x SFP ports to ensure robust long-range fibre optic communication.
Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations
all with effortless installation thanks to an integrated DIN rail mount.

Key Features

• 8x1G LAN and 2xSFP
• Support for EtherNet/IP, PROFINET, and MRP
• Rugged design
• Integrated DIN rail mount

Package Contents

• Switch
• QSG (Quick Start Guide)



  Technical parameters

  Connectors and Interfaces

  LAN speed : (8) 10/100/1000Mbps

  Optical interfaces : (2) 1000Mbps

  Power

  Power type : DC terminal

  Max. power consumption [W] : 6

  Power via connector/terminal : 7 .. 57V DC

  Physical characteristics

  Design : DIN rail, Industry

  Fans : No

  Chassis design : Metal

  Buttons : Reset

  Operating temperature [°C] : -40 up to 70

  Width [mm] : 132

  Height [mm] : 44

  Depth [mm] : 122

  General

  Switchning capacity [Gbps] : 20

  MAC address table : 8000

  Jumbo frame [Bytes] : 10000

  Packet forwarding rate [Mpps] : 14,9

  Software

  Web management : Yes

  Management : Web management

  Features : VLAN

  Default IP address : 192.168.1.2

  Default login and password : admin / (preset password, see label/engraving)
