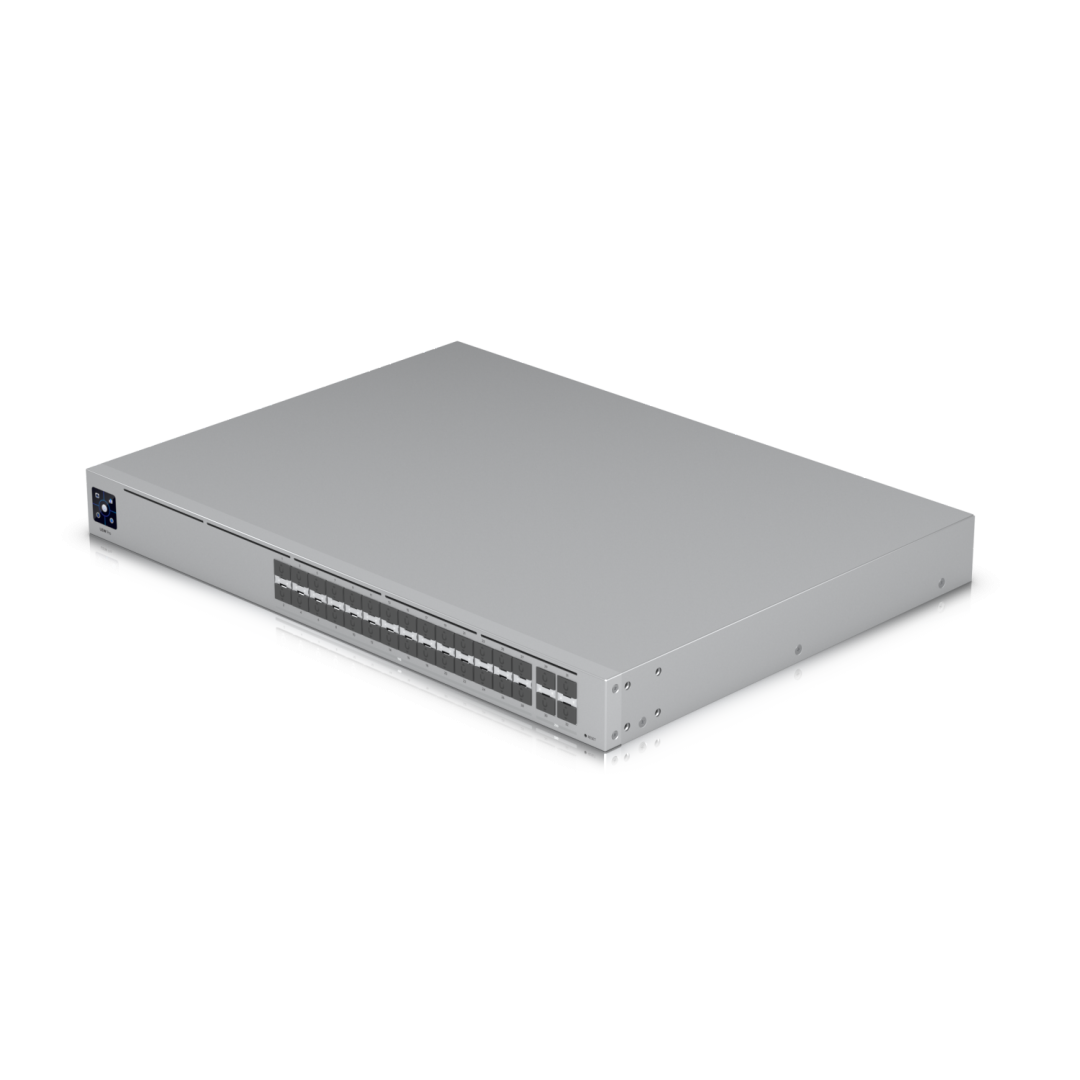

Ubiquiti USW-Pro-Aggregation - UniFi 28 Fiber Ports 10 Gigabit Aggregation Switch

Product description

USW-Aggregation-Pro is a fully manageable L3 switch in a 19" rackmount chassis with 4× SFP28 (supporting 1 G / 10 G / 25 Gbps) and 28× SFP+ (1 G / 10 Gbps support) ports :
With a 1.3" touch screen, you can instantly see the most important information such as error conditions, warnings, port statistics, power consumption of connected devices,
network load and more. USW-Aggregation-Pro is managed using the UniFi Controller or a mobile application, which allows you to easily create,
scale and monitor your corporate network.

Key Features

• (28) 1G / 10Gbps (SFP+)
• (4) 1G / 10G / 25Gbps (SFP28) - speed on all 4 ports is limited by the slowest of them, or mix. 1G and 10G modules
• 760 Gbps switching capacity
• Touch screen
• Backup power via SmartPower RPS connector
• Supported in UniFi Controller from version 6.1.25

Management via UniFi Controller

USW-Aggregation-Pro does not have web management but is managed centrally by UniFi Controller with support for the UniFi mobile application and offers an extensive
set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile
applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.

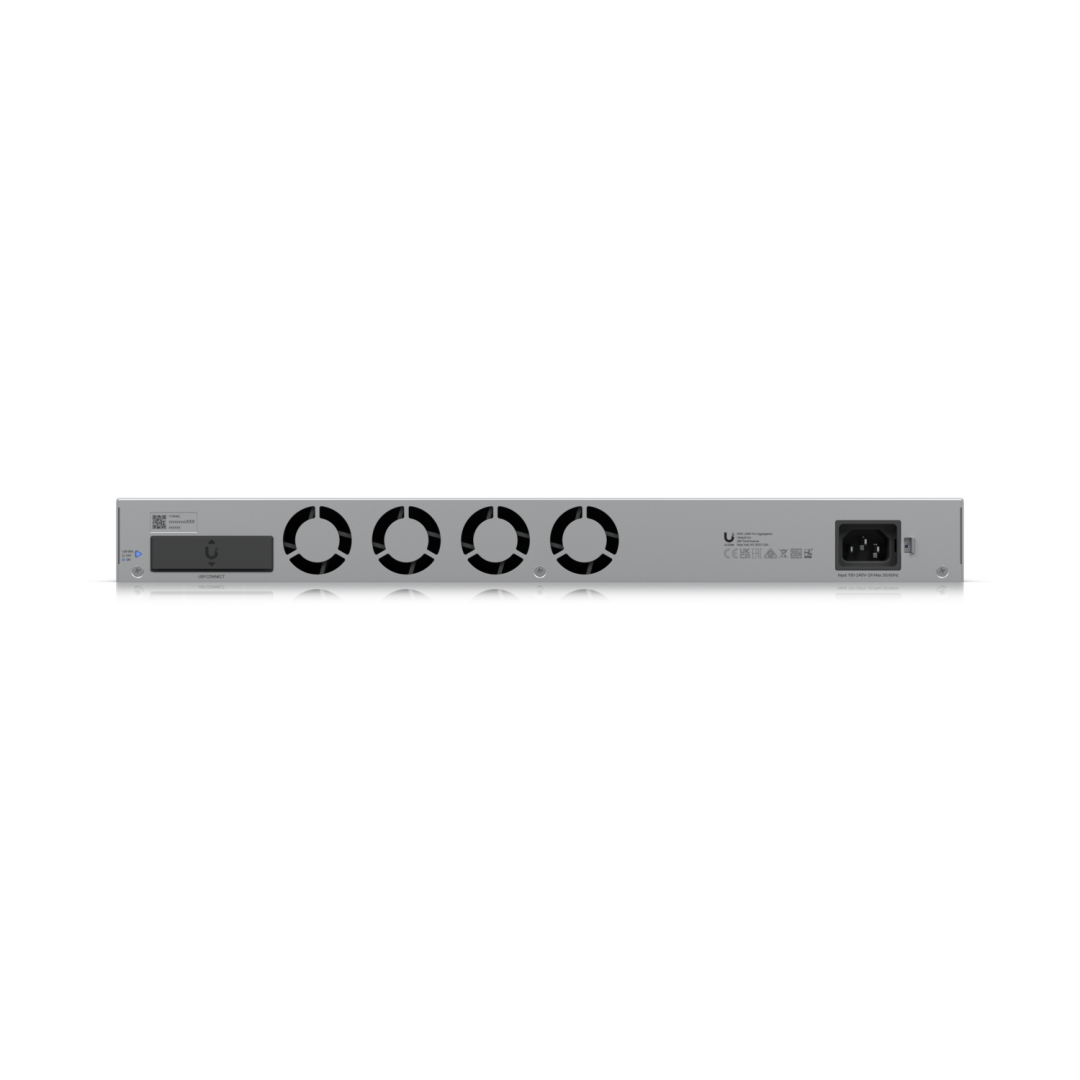

Redundant power

This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower unit in the event of a failure of the primary power supply at the switch.

Package Contents

• Devices
• Power cord
• 19" rack mounts





  Technical parameters

  Connectors and Interfaces

  Optical interfaces : (28) 1G/10Gbps + (4) 1G/10G/25Gbps

  Power

  Power type : Mains power (230V), UniFi SmartPower RPS

  Max. power consumption [W] : 100

  Power via connector/terminal : 230V AC

  Physical characteristics

  Design : Rackmount

  Chassis design : Metal

  Operating temperature [°C] : -5 up to 40

  Width [mm] : 442

  Height [mm] : 44

  Depth [mm] : 325

  General

  Switchning capacity [Gbps] : 760

  Jumbo frame [Bytes] : 9000

  Packet forwarding rate [Mpps] : 565,4

  Software

  Features : VLAN, QoS, DHCP snooping

  Default IP address : Dynamic from DHCP
