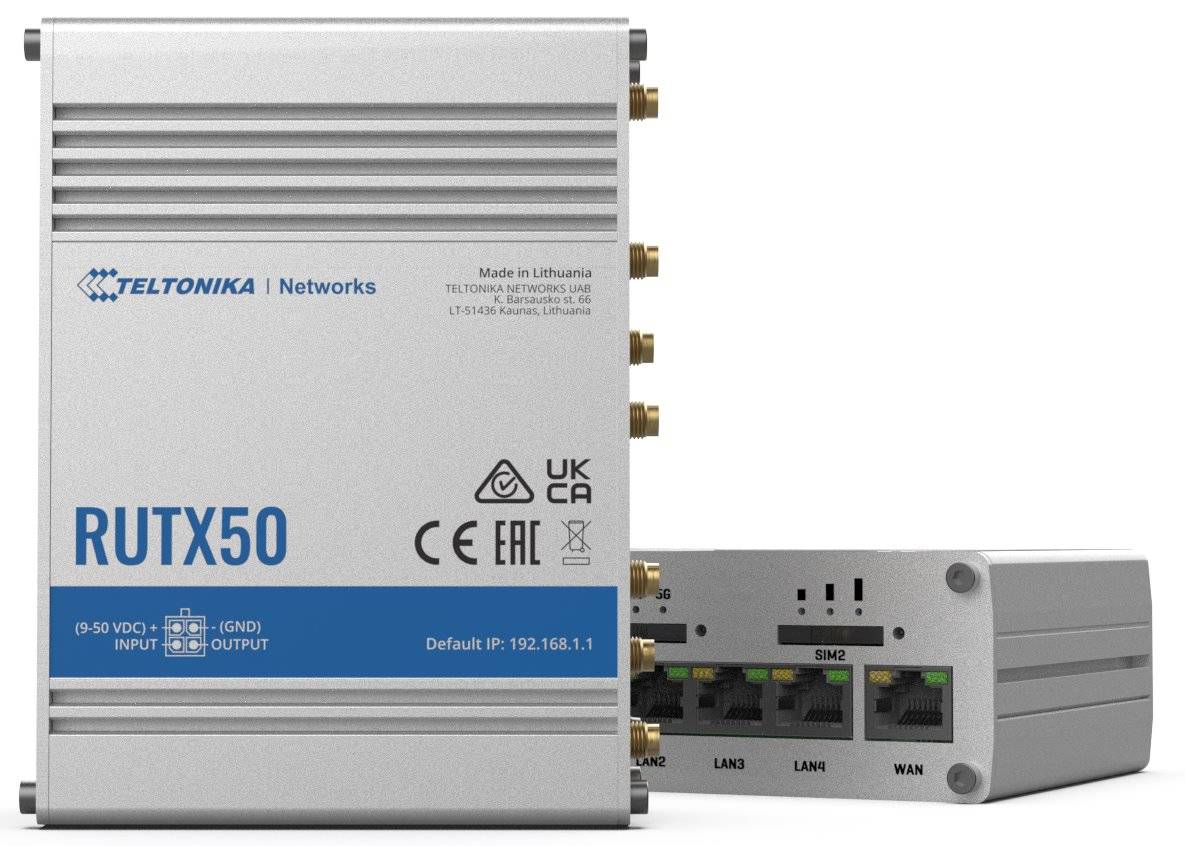

Teltonika RUTX50 Industrial 5G Router

Product description

Teltonika RUTX50 is an industrial multi-network router that offers 5G mobile communication for high-speed and data-intensive applications.
5G mobile communication with the option of dual SIM configuration is combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi
enabling reliable data transmission with ultra-low latency.

The power of 5G technology combined with a wide range of interfaces and industrial hardware features ensures adaptability
for future upgrades and expansion of the entire system.

Main advantages

• Compact size
• Powerful 5G / WiFi system
• Supports GNSS positioning

Including advanced RutOS

RUTX50 is shipped with RutOS which provides advanced security features and specialized industry protocols for a wide range
of professional application scenarios.
It is fully compatible with Teltonika RMS remote management with the possibility of monitoring large groups of devices.

Key Features

• Combined router with variable connection
• Durable aluminum cover
• Supports 5G networks, dual-band WiFi ac and fixed gigabit ethernet
• RutOS operating system
• Interfaces : 5× 10/100/1000 Mbps (1× WAN, 4× LAN), 4× SMA for 5G, 2× RP-SMA for WiFi, 1× SMA for GNSS, 1× digital in, 1× digital out, 1× USB, 2× SIM slot (Mini SIM – 2FF)




  Technical parameters

  Wireless features

  Wireless frequency : 2.4 + 5 GHz (dual band), LTE, 4G (GSM), 5G (GSM)

  WiFi standards : 802.11n, 802.11ac, 802.11b/g, 802.11ac - wave2

  Transmission speed - 5GHz [Mb/s] : 866

  Transmission speed - 2.4GHz [Mb/s] : 300

  2.4GHz MIMO : 2 x 2

  5GHz MIMO : 2 x 2

  4G/LTE bands support : (1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz

  5G bands support : (n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz

  Connectors and Interfaces

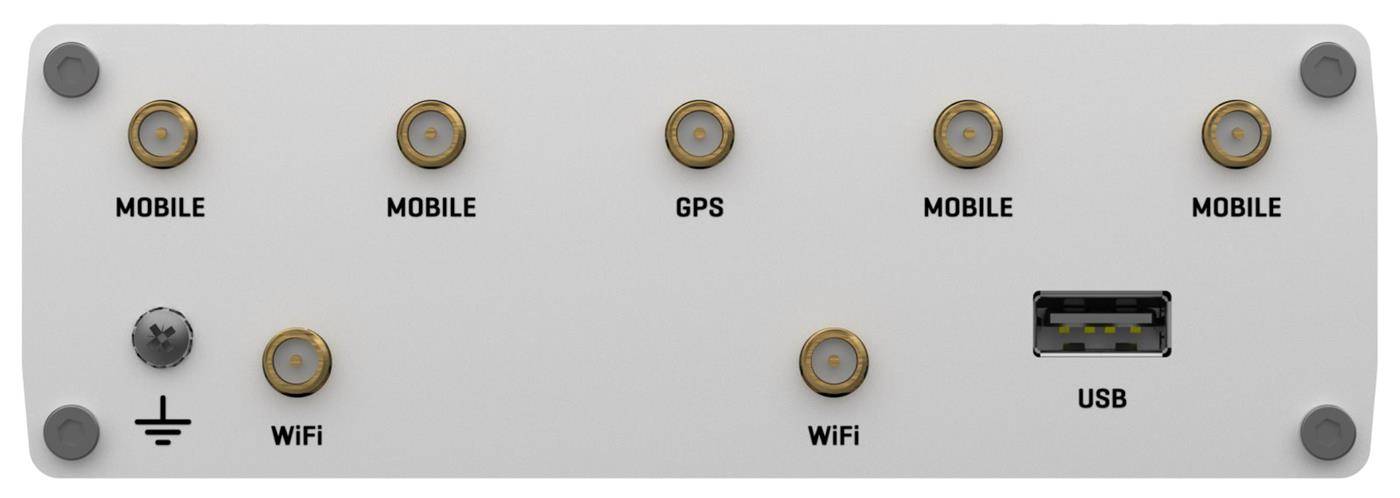

  RF connectors : (5) SMA male, (2) RP-SMA

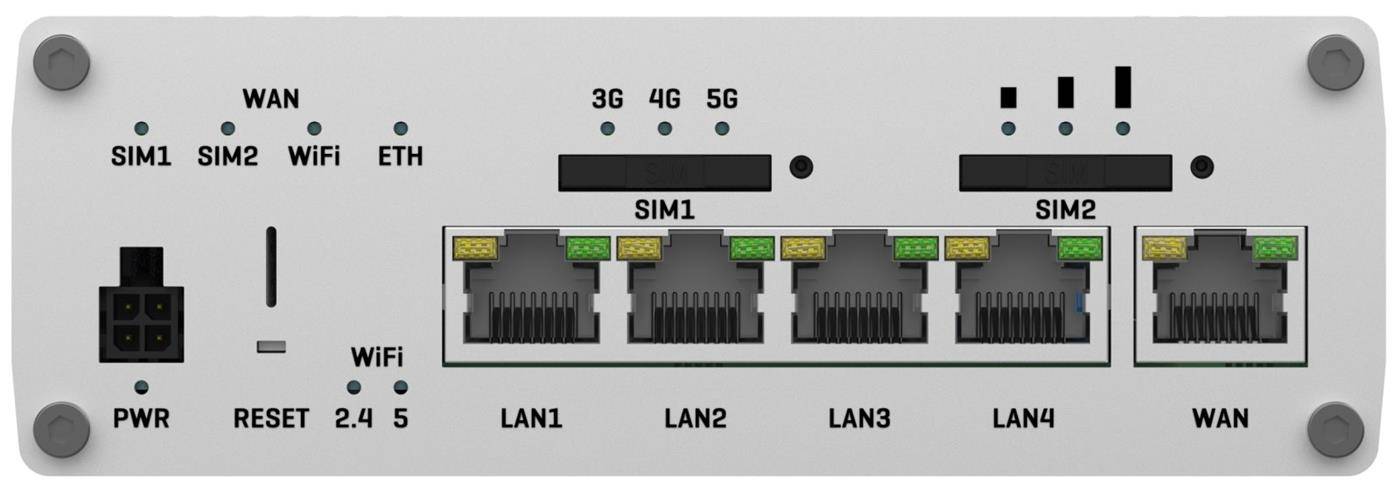

  LAN speed : (4) 10/100/1000Mbps + (1) 10/100/1000Mbps LAN/WAN

  SIM slot : Yes

  SIM slots quantity : 2

  USB : Yes

  GPS modul : Yes

  Power

  Power over Ethernet : 9 .. 50V DC

  Power type : PoE, DC terminal

  Max. power consumption [W] : 18

  Power via connector/terminal : 9 .. 50V DC

  Physical characteristics

  Buttons : Reset

  Operating temperature [°C] : -40 up to 75

  Weight [g] : 533

  Width [mm] : 132

  Height [mm] : 44

  Depth [mm] : 95

  Hardware

  CPU : ARM Cortex A7

  CPU frequency [MHz] : 717

  Internal storage [MB] : 256

  RAM [MB] : 256

  Software

  3G/4G support : Yes

  Operating system : RutOS (OpenWrt based Linux OS)

  Default IP address : 192.168.1.1

  Default login and password : admin / admin01
