Teltonika TSW010 Din Rail Switch

Product description

TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices.
Five 10/100 Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications
where high throughput is not required.
Wide range of supported power supply voltages (9-30 V) and rugged design make it suitable for professional solutions.

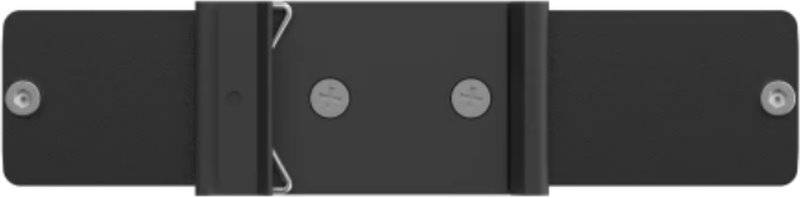

Compact size and integrated DIN rail bracket enable easy installation across different industrial environments.

Key features

• 5 LAN ports with speeds up to 100 Mbps
• Compact size
• DIN rail mounting option
• Plug and Play - No additional configuration needed

Package contents

• Device
• QSG (Quick Start Guide)
• Packaging box



  Technical parameters

  Connectors and Interfaces

  LAN speed : (5) 10/100Mbps

  Power

  Power type : DC connector

  Max. power consumption [W] : 1

  Power via connector/terminal : 9 .. 30V DC

  Physical characteristics

  Design : DIN rail

  Chassis design : Metal

  Operating temperature [°C] : -40 up to 75

  Width [mm] : 113

  Height [mm] : 27

  Depth [mm] : 81

  General

  MAC address table : 2000

  Jumbo frame [Bytes] : 2048
