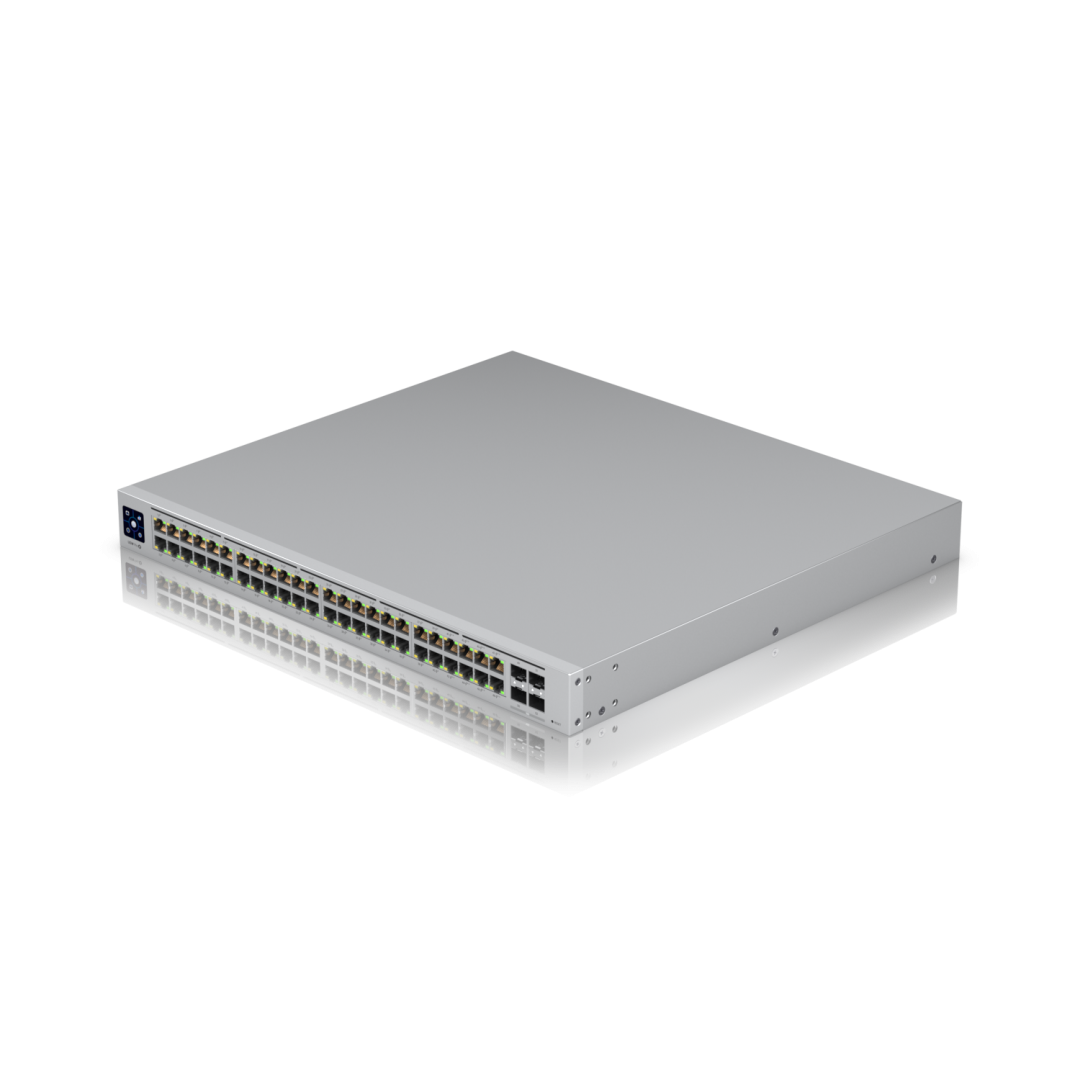

Ubiquiti UniFi Switch USW-Pro-48-POE Gen2

Product description

The second generation UniFi switches bring many changes and improvements, the switches have been redesigned from the ground up.
Compared to the first generation, there is a significant improvement in airflow, which is used for cooling, making it up to 4x quieter* than the first generation.

* at an ambient temperature of 25° and a 25% POE load, the switch is 3.6 times quieter

* at an ambient temperature of 25° and a 50% POE load, the switch is 4.2 times quieter

* at an ambient temperature of 25° and a 100% POE load, the switch is 1.9 times quieter

Equipment

USW-Pro-48-POE Gen2 has a total of 24 POE-Out ports. 1-40 ports support 802.3af/at standards, 41-48 ports support 802.3bt (60W) standards. The total POE budget is 600W
(total power of 660W, 60W switch power consumption).

The pair of 10G SFP + ports with 1G SFP backward compatibility will serve as the Uplink. In case of power failure, the switch can be connected to the UniFi SmartPower backup
system, which can handle up to 6 supported devices.

LCD display

The LCD touchscreen instantly shows the most important informations like error conditions, warnings, port statistics, connected device consumption, network usage, and more.

L3 features

In the future firmware version, L3 switch functionality is planned.

Package contains

• Device
• Power cord
• Rackmount ears




  Technical parameters

  Connectors and Interfaces

  LAN speed : (48) 10/100/1000Mbps

  Optical interfaces : (4) 1G/10Gbps

  Other features : Touchscreen

  Power

  Power type : Mains power (230V), UniFi SmartPower RPS

  PoE type : PoE-Out (only)

  PoE-Out standards : 802.3af, 802.3at, 802.3bt

  Redundant power supply : Yes

  PoE Out ports : 48

  PoE budget [W] : 600

  Max. power consumption [W] : 60

  Power via connector/terminal : 230V AC

  Physical characteristics

  Design : Rackmount

  Fans : (2) 40 x 40 mm

  Chassis design : Metal

  Buttons : Reset

  Operating temperature [°C] : -5 up to 40

  Width [mm] : 442

  Height [mm] : 44

  Depth [mm] : 400

  General

  Switchning capacity [Gbps] : 176

  MAC address table : 16000

  Jumbo frame [Bytes] : 9000

  Packet forwarding rate [Mpps] : 131

  Software

  Management : UniFi Network

  Features : VLAN, DHCP snooping

  Default IP address : 192.168.1.20, Dynamic from DHCP

  Default login and password : ubnt / ubnt
