Teltonika RUT260 LTE6 Cellular Router

Product description

Teltonika RUT260 is an LTE Cat6, up to 300 Mbps, router with WAN failover.
It is equipped with 1x 10/100 Mbps WAN/LAN port and 1x 10/100 Mbps LAN port.
For Wi-Fi connectivity, it uses 2.4 GHz Wi-Fi 802.11b/g/n with WPA, WPA2, WPA3 security.
The router features the RutOS operating system with advanced functions such as failover,
load balancing, VPN, tunnels, and many more.

Key Features

• LTE Cat6 up to 300 Mbps
• 1x WAN/LAN and 1x LAN
• WAN failover, load balancing
• VPN and tunnel support
• 2.4 GHz Wi-Fi 802.11b/g/n

Package Contents

• RUT260 Router
• Power Adapter 9V/1A
• 2x Mobile Antenna SMA Male
• 1x Wi-Fi Antenna RSMA Male
• Patch Cable
• SIM Adapter



  Technical parameters

  Wireless features

  Wireless frequency : 2.4 GHz, LTE

  WiFi standards : 802.11n, 802.11b/g

  Transmission speed - 2.4GHz [Mb/s] : 150

  Tx power 2.4GHz [dBm] : 23

  Security : WEP, WPA, WPA2, WPA3

  2.4GHz MIMO : 1 x 1 SISO

  Type of antenna : Detachable

  Antenna gain [dBi] : 4, 5

  Integrated 4G/LTE radio part : Yes

  4G/LTE bands support : (1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz,
                                        (42) 3500 MHz, (43) 3700 MHz, (39) 1900 MHz, (28) 700 MHz, (32) 1500 MHz

  Connectors and Interfaces

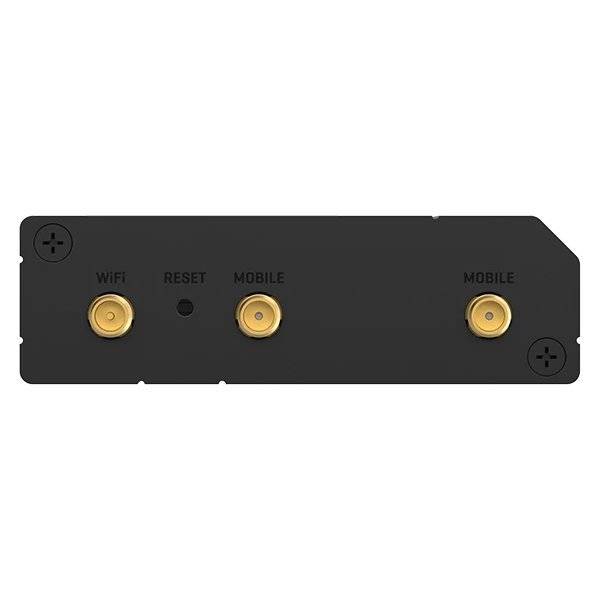

  RF connectors : (1) RSMA female, (2) SMA female

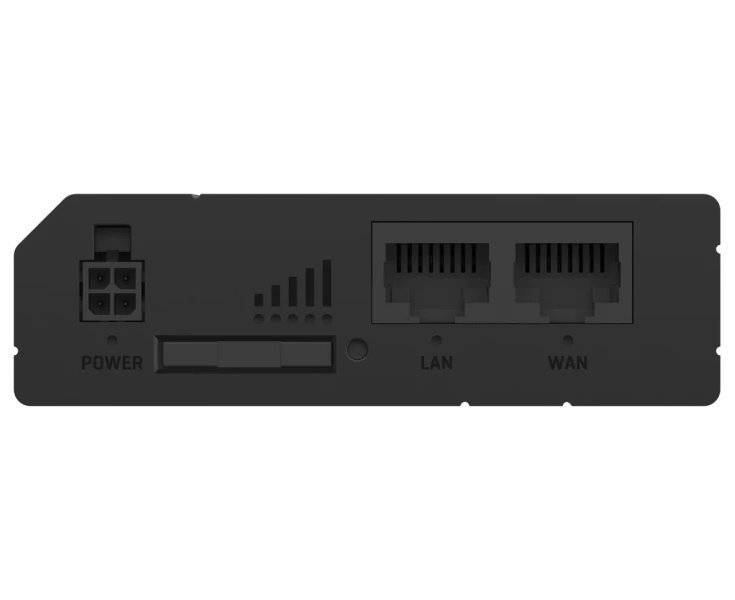

  LAN speed : (2) 10/100Mbps (1x LAN/WAN)

  SIM slot : Yes

  SIM slots quantity : 1

  Power

  Power type : DC connector

  Max. power consumption [W] : 6,5

  Power via connector/terminal : 9 .. 30V DC

  Physical characteristics

  Buttons : Reset

  Operating temperature [°C] : -40 up to 75

  Weight [g] : 130

  Width [mm] : 83

  Height [mm] : 25

  Depth [mm] : 74

  Software

  Operating system : RutOS (OpenWrt based Linux OS)

  IPv6 support : Yes

  Default IP address : 192.168.1.1
