Teltonika RUTXR1 Enterprise rack-mountable SFP/LTE router

Product description

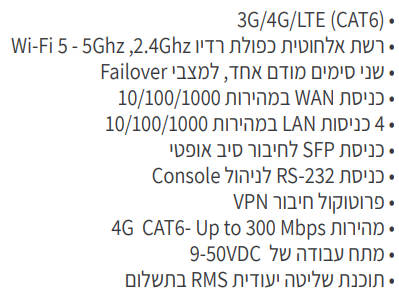

RUTXR1 is a rack-mountable LTE Advanced (LTE-A) router equipped with
5x Gigabit Ethernet ports,
WiFi,
Dual-SIM,
USB port,
Console port,
redundant power supplies,
SFP port and RutOS software for advanced networking solutions.

There is the WAN SFP port for optical connection.
Additional peripherals or storage can be connected using the USB 2.0 port.
The CPU Quad Core ARM Cortex A7 with the clock rate of 717MHz and 256MB DDR3 RAM ensure smooth operation.
Power is provided by 12V power adapter.

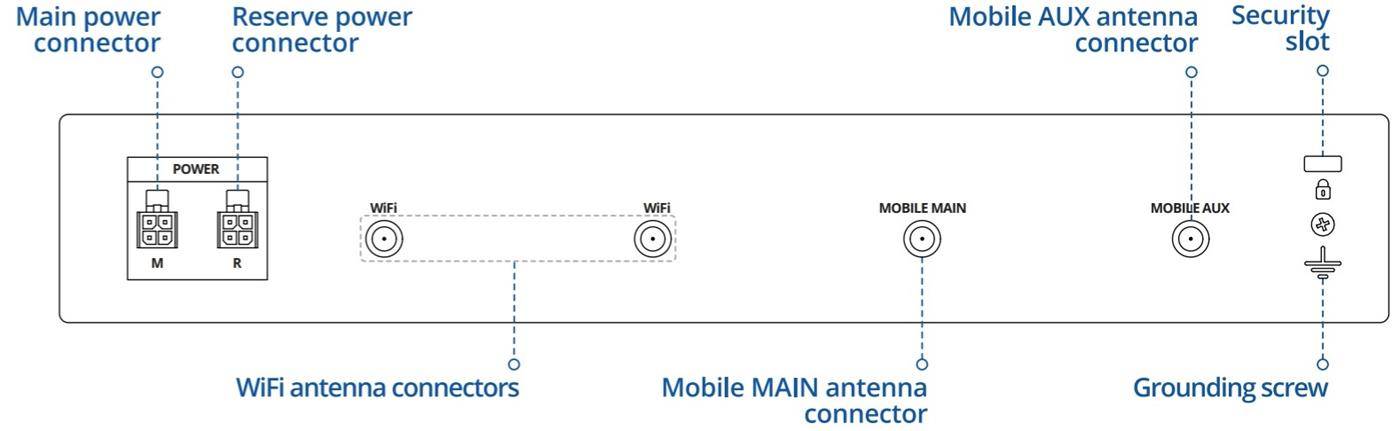

However, it is possible to connect two sources to the device, with the second being intended as a backup in the event of blackout.

Package contents

• Device
• 2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• Rack mounting kit
• 4 x Standing pads
• 8 x Screws
• SIM needle
• 18W Euro PSU
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)




  Technical parameters

  Wireless features

  Wireless frequency : 2.4 + 5 GHz (dual band)

  WiFi standards : 802.11n, 802.11a, 802.11ac, 802.11b/g

  Transmission speed - 5GHz [Mb/s] : 866

  Transmission speed - 2.4GHz [Mb/s] : 300

  2.4GHz MIMO : 2 x 2

  5GHz MIMO : 2 x 2

  Connectors and Interfaces

  RF connectors : (2) SMA male + (2) RP-SMA male

  LAN speed : (4) 10/100/1000Mbps + (1) 10/100/1000Mbps WAN

  Optical interfaces : (1) 1000Mbps

  SIM slot : Yes

  SIM slots quantity : 2

  USB : Yes

  Power

  Power type : DC connector

  Max. power consumption [W] : 18

  Power via connector/terminal : 9 .. 50V DC

  Physical characteristics

  Buttons : Reset

  Operating temperature [°C] : -40 up to 70

  Weight [g] : 1050

  Width [mm] : 272

  Height [mm] : 43

  Depth [mm] : 123

  Hardware

  CPU : Quad-core ARM Cortex A7

  CPU frequency [MHz] : 717

  Internal storage [MB] : 256

  RAM [MB] : 256

  Software

  Operating system : RutOS (OpenWrt based Linux OS)

  Default IP address : 192.168.1.1

  Default login and password : admin / admin01
